Description

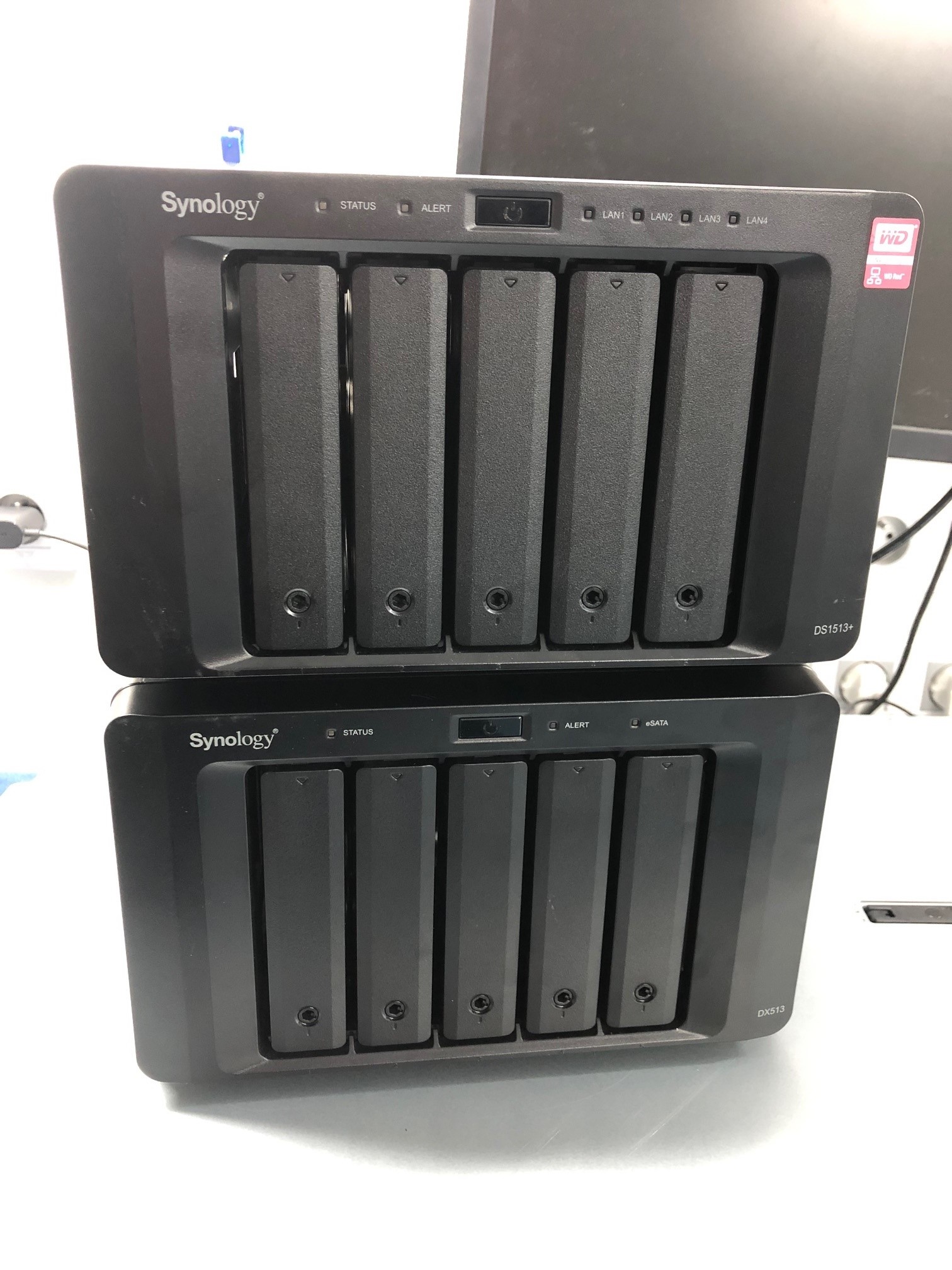

SYNOLOGY – NAS 5LFF – DS1513+
+ extensions 5LFF DX513

Technical Specifications
Hardware
CPU                                         Intel Atom Dual Core 2.13 GHz
Floating Point                        Yes
RAM Size                               DDR3 2 GB (Expandable up to 4 GB)
Internal HDD/SSD              3.5” or 2.5” SATA(II) X 5 (hard drives not included)
Max Internal Capacity        20 TB (4 TB HDD X 5) (actual capacity will differ according to volume types)
Hot Swappable HDD           Yes
External HDD Interface     USB 3.0 ports X 2, USB 2.0 ports X 4, eSATA X 2
Size (HxWxD)                       157x 248 x 233 mm
Weight                                   4.25 kg
LAN                                        Gigabit X 4
Wake on LAN/WAN           Yes
Wireless Support                 Yes (wireless dongles not included)
Noise Level                           22.1 dB(A)
AC Input Power Voltage    100V to 240V
Power Frequency                50 Hz to 60 Hz, Single Phase
Operating Temperature    5°C to 35°C (40°F to 95°F)
Storage Temperature        -10°C to 70°C (15°F to 155°F)
Relative Humidity            5% to 95% RH / Power Consumption4 51W (Access), 25.75W (HDD Hibernation)
